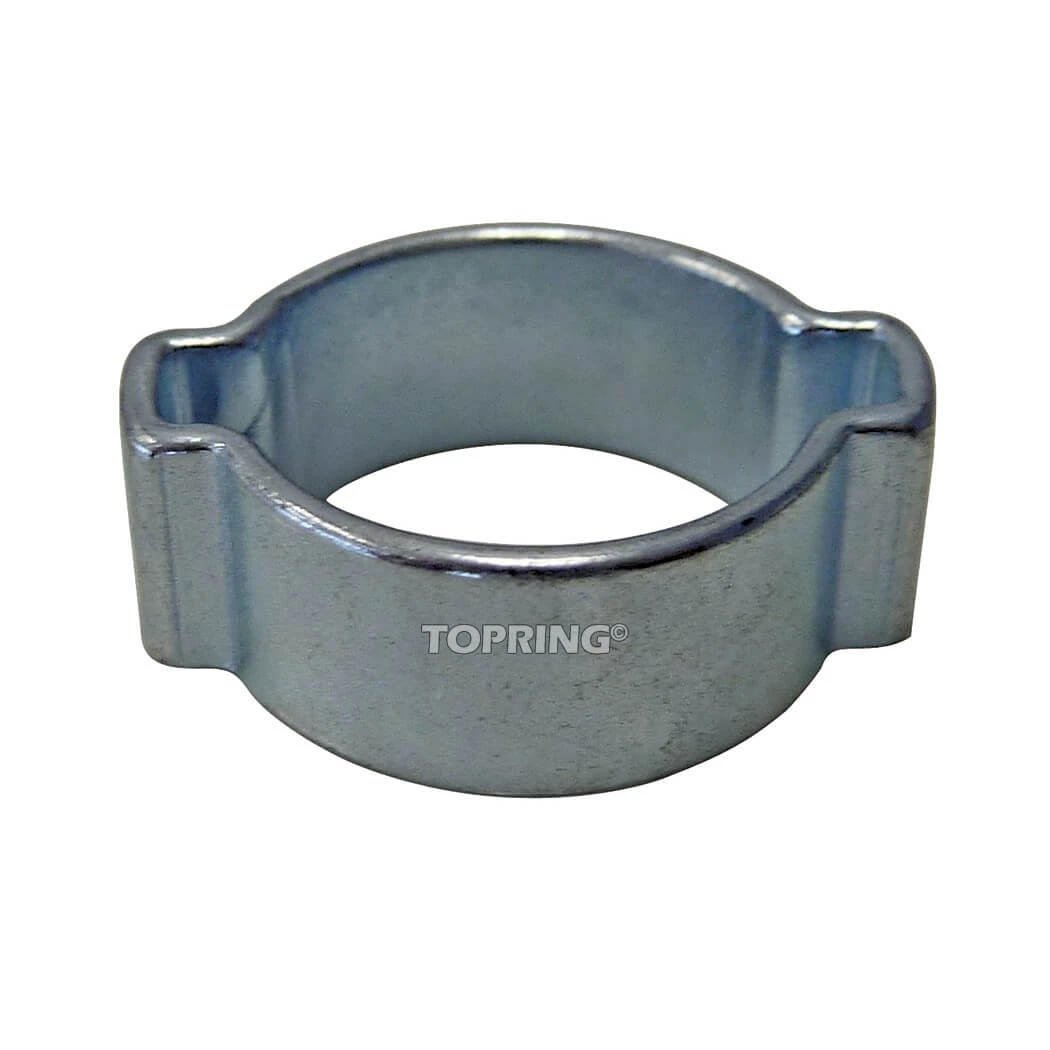

TOPRING ACCESSORIES 48.314 1/2″ Hose Clamp (use For 1/4″ Hose)

Technical specifications and certifications

• Tightening Range: 0.43 – 0.51 in
• Tightening Range: 11 – 13 mm
• Band Width: 1/4 in
• Band Width: 7 mm

Material(s):
• Zinc plated steel

Features and benefits

• One-piece design offers strong clamping action without damage to air hose or tubing
• Rubber and PVC air hoses are easily clamped
• Quick assembly using a crimping pincer

Operation and installation

INSTALLATION TIP
Select a hose clamp diameter larger than the outside diameter (O.D.) of the air hose on which the hose clamp will be used
One ear must be clamped completely
When the second ear is closed, the first ear will open slightly
This creates a spring-like action which prevents against vibrations, pressure and air hose shrinking caused by temperature changes or wear

Applications

• Widely used with compressed air, liquid and gas lines
