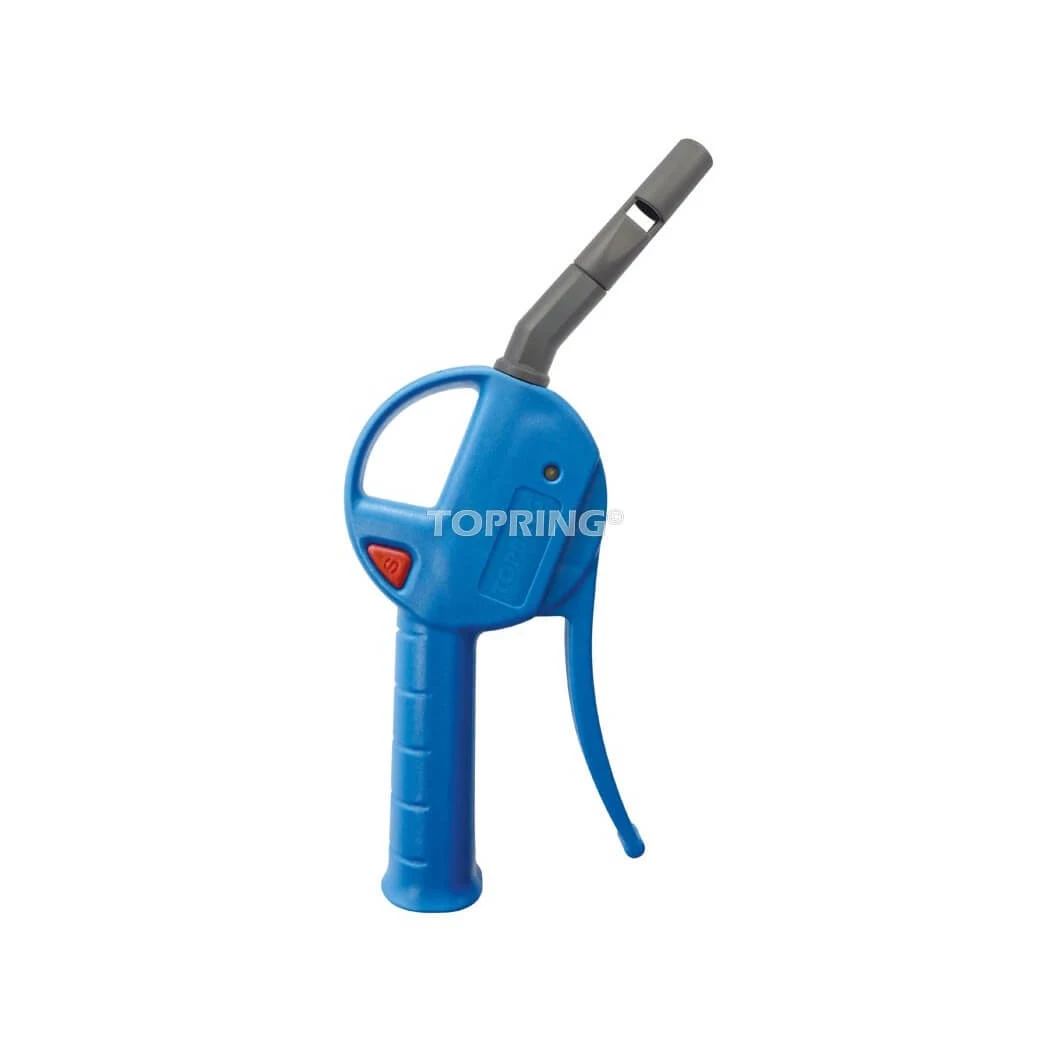

TOPRING 60.316.15 – Pro Safety Blow Gun Venturi Tip

Category

Subcategory

Noise Level

Length

Technical specifications and certifications

• Description: with venturi nozzle
• Working Temperature : -15 to 70 °C
• Noise Level at 116 PSI: 108 dB
• Air Consumption at 116 PSI: 18.4 SCFM*
• Maximum Working Pressure: 145 PSI
• Connection: 1/4 (F) NPT

Material(s):
• Body: Reinforced antishock polyamide
• Nozzle: Reinforced antiscratch polyamide
• Valve: Reinforced polyamide
• Springs: Galvanized steel
• Seals: NBR
• Inlet Connection: Brass

Features and benefits

• Airflow can be precisely regulated simply by squeezing and releasing the handle
• Convenient built-in ring for easy storage
• Ergonomically designed non-slip grip to ensure complete safety and handling
• Superior durability thanks to the materials used in the manufacturing
• Laboratory tested mechanism to resist to more than 100 000 operation cycles

Operation and installation

HOW IT WORKS
If the tip of the nozzle is blocked, the air escapes through the side holes and the static pressure remains under 30 PSI.

Caution

• Users should never use blow guns to clean themselves
• A vacuum or a safety cleaning unit should be used instead

Applications

• Clearing away chips and shavings, cleaning of parts and machines, blowing, drying and dust removal from parts and work areas.
• For machine and woodworking shops, construction, lumber mills, paper mills, textile mills, foundries, transportation, bakeries and food processing, rubber and plastic manufacturing plants, general cleanup and maintenance
