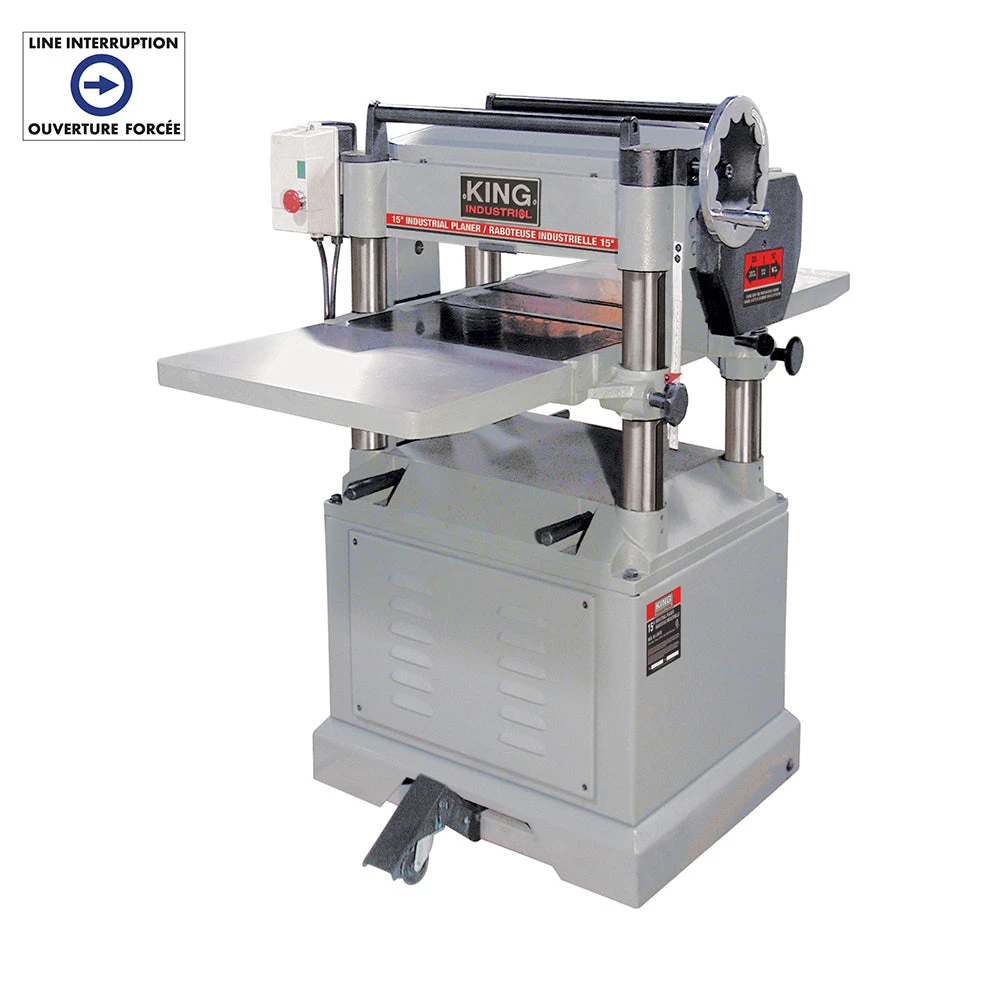

15″ PLANER
- Powerful 3 HP motor
- Table raises and lowers on four precision groundĀ columns for extra stability
- 3 knife cutterhead allows rapid cutting while producingĀ a superior finish
- Anti-kickback fingers in front of the infeed roller to prevent wood kickback
- Magnetic safety switch
- Stock return rollers on top of planer for multiple passes
- Extension tables provide support for longer material
- Mobile base system built into the cabinetĀ
- Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
- Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
- Comes complete with cabinet stand and 4″ dust collector outlet
- MODELĀ KC-385FX
- MAXIMUM PLANING WIDTHĀ 15″
- MAXIMUM PLANING THICKNESSĀ 8″
- MAXIMUM DEPTH OF CUTĀ 1/8″
- CUTTERHEAD SPEEDĀ 5,000 RPM
- CUTTERHEAD DIAMETERĀ 2-7/8″
- NUMBER OF KNIVESĀ 3
- FEED RATE2 (16-30) FPM
- NUMBER OF CUTS PER INCHĀ 78-63
- MOTORĀ 15 Amp.
- VOLTAGEĀ 220V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT32-1/2″ x 42″ x 45″ / 625 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT31-1/8″ x 29-1/4″ x 47-1/2″ / 630 lbs
