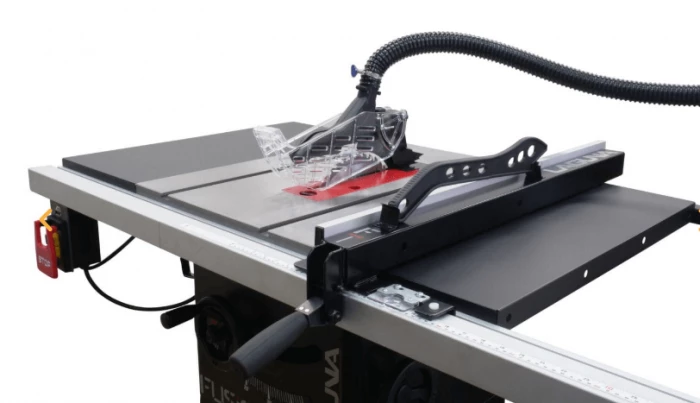

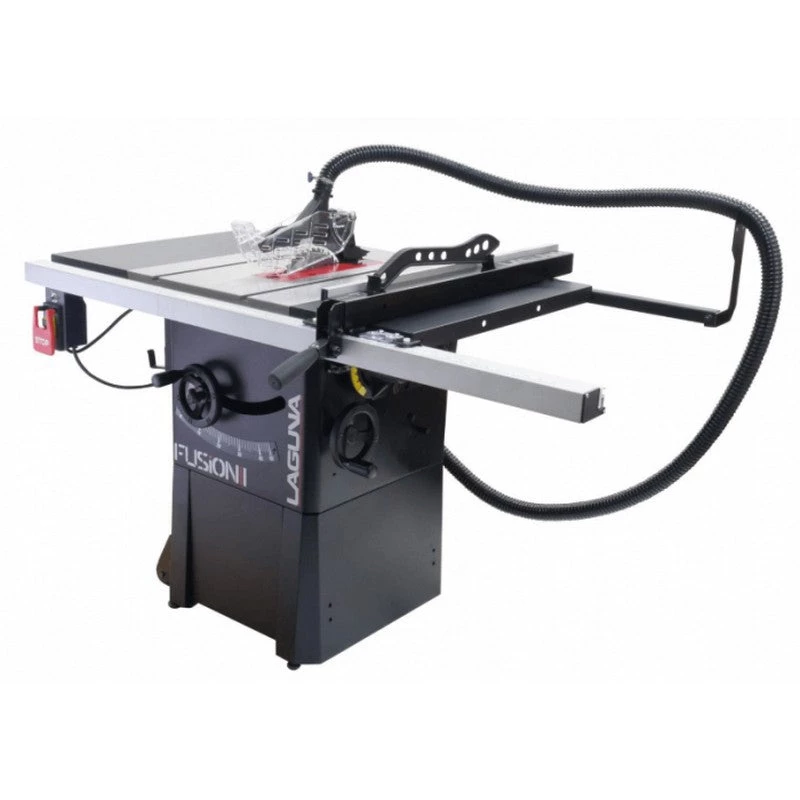

Laguna MTSF132110150-0130 Fusion F1 Tablesaw – Precision Cutting Tool

MTSF132110150-0130, LAGUNA FUSION F1 TABLESAW

The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.



Features:

• 1.5HP TEFC Motor
• 110V, Single-Phase, 60Hz Power Requirement
• Polished Cast Iron Table
• Included Tools & Integrated Tool Storage
• Included 10 x 60T Carbide-Tipped Blade
• Fusion Hi-Lo Dust Collection
• Fusion Over-Under Trunnions
• Reset Switch
• Quick-Release Blade Guard and Spreader
• Riving Knife Included
• Push Stick Included
• Mitre Gauge Included
• Premium Handles
• Premium Arbor and Motor Bearings



Specifications:

• Power Requirements:110V-1PH-60HZ*
• Amperage (FLA): 12 AMP
• Motor Power: 1.5 HP
• Motor Speed: 3450 RPM
• Starter Switch: Magnetic
• Plug Included: 5-15
• Circuit Breaker Req.: 110V – 20 AMP
• Receptacle Req.: 5-15
• Certification: CSA C/US 175370
• Net Weight: 200 lbs
• Shipping Weight: 280 lbs
• Shipping Dimensions: L30″ W40″ H30″
• Overall Size: L39-3/4″ W59-5/8″ H38″
• Rip Capacity: 30″
• Cutting Material: Wood
• Blade Size: 10″
• Vertical Cut Height: 3 1/8”
• 45° Cut Height: 2 1/8″
• Tilt: 0-45° Left
• Min. Kerf: 3mm ~1/8″ (actual: 0.1875″)
• Max. Kerf (Dado Blade): 13/16″
• Arbor Speed: 4000 RPM
• Arbor Diameter:  5/8″
• Mitre Slot: 3/4″ to 1″ T
• Throat Plate: Zero Clearance Square Die- Cast, w/ adjustment
• Fence: Single Rail Cam Action
• Overall Size: L39-3/4″ W59-5/8″ H38″
• w/ 52″ Extension: +16″ to W in Overall Size
• Base: L19″ W20″
• Floor to To Table: H34-3/4″
• Table: L27″ W20″
• Extension Wing: L27″ W12″ (x2)
• Throat Plate: L14-5/8″ W4-1/16″ th1/2″
• Dust Collection:
• Dust Port Outer Diameter: 3-7/8″
• CFM Requirement: 350 CFM
• Dust Port Outer Diameter:3-7/8″
• Table: Cast Iron
• Table Wing: Sheet Steel
• Cabinet : Sheet Steel
• Throat Plate: Die Cast Iron
• Arbor Wheels: Die Cast
• Fence: Aluminum Rail, Steel Body
• Upper Trunnion : Cast Aluminum Alloy
• Lower Trunnion: Cast Aluminum Alloy
• Features & Comparison:
• Industrial Use: NO
• Enclosed Cabinet: NO
• Integrated Mobility: NO
• Quick Release Guards: YES
• Quick Blade Change: YES
• Integrated Tool Holder: YES
• TEFC Motor: YES
• 110V Power: YES
• Iron Upper Trunnion:NO
• Dado Throat Plate:  PTSF236110175-001
• Thin Kerf Riving Knife: PTSF132110150-0130-000
• Right of wing table: NO
• Outfeed Table Attachment: NO
