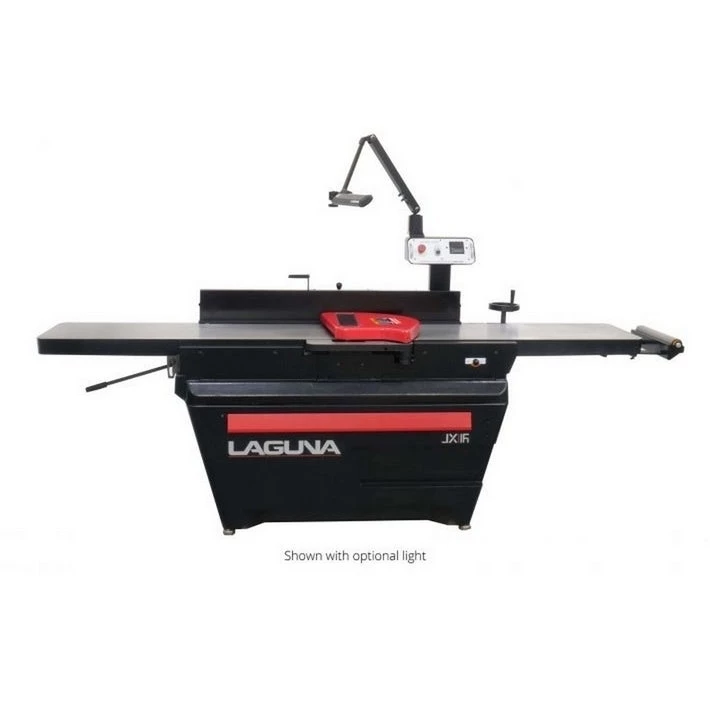

Laguna MJ16X100P - LAGUNA JX|16, 16IN PARALLELOGRAM JOINTER

Original price was: $582.00.Current price is: $96.99.

Elevate your woodworking with the Laguna MJ16X100P, a robust 16IN parallelogram jointer designed for precision and durability.
Enjoy smooth and accurate results with the advanced parallelogram design, ensuring stability and ease of use in every project.
The Laguna MJ16X100P is perfect for both professional woodworkers and hobbyists, offering exceptional performance and reliability.
Laguna Tools is renowned for high-quality woodworking machinery, and the MJ16X100P is no exception, meeting the highest standards of craftsmanship.
Shop the Laguna MJ16X100P today and experience the best in woodworking tools with our secure payment options and fast shipping.

SKU: 6541934231655 Category: WHAT'S NEW Tags: 16'', JOINTER, Sd_preorder

7 days return and exchange
The best quality products, always.
100% environmentally friendly material
Service with a smile, always online.

Description
Reviews (0)

PX|16

All-new for 2021, the Laguna JX|16 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.

Features

Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials
ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|16 ShearTec II Jointer.
Deluxe Fence – 5-¾” fence with flip-down small fence for intricate work
Worklight Ready – Built-in outlet and bracket for optional LED work light
Power-feeder Ready – Included bracket to mount optional power-feeder

Motor: 220V 7.5HP 3 Phase 60hz/20 Amp

CSA: Yes

Bed Size: 16″ x 100″

Infeed Table Pull-Out Extension: 10″

Rabbetting Capacity: 3/4″

Fence Size: 5-3/4″ x 47″ Aluminum Fence

Fence Tilt: ±45/90°

Max. Depth Of Cut: 1/8″

Table Height From Floor: 32″

Safety Bar Shut-Off: Yes

Wheels Built-In: No

Bracket To Mount Light: Yes

110V Outlet For Light: Yes

Bracket To Mount Feeder: Yes

Dust Port Diameter: 6″

Cutterhead Insert #: 90 x 4-Sided Carbide, 6 Row

Cutterhead RPM: 5500

Cutterhead Diameter: 3-7/8″

Bed Adjustment: Parallelogram

Dimensions Set Up (Approx): 103″ x 48″

Dimensions Shipping: 105″ x 35″ x 48″

Net/Ship Weight: 1078/1254 Lbs. (1 Box)
