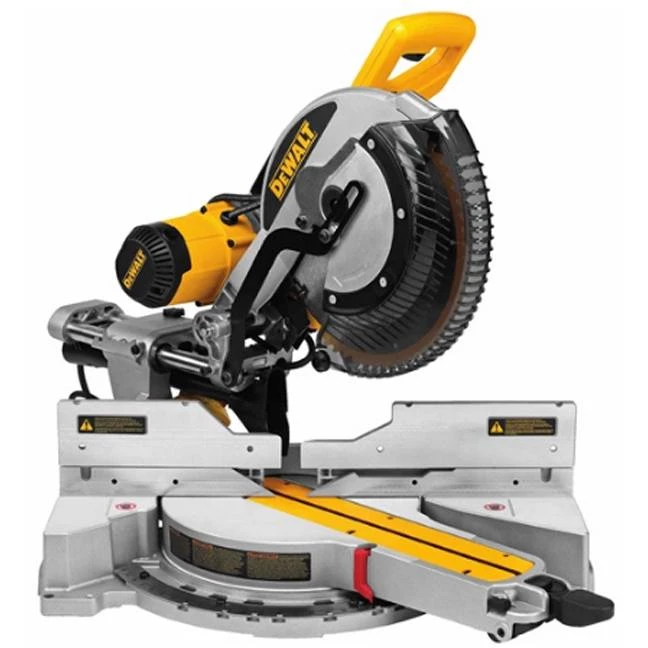

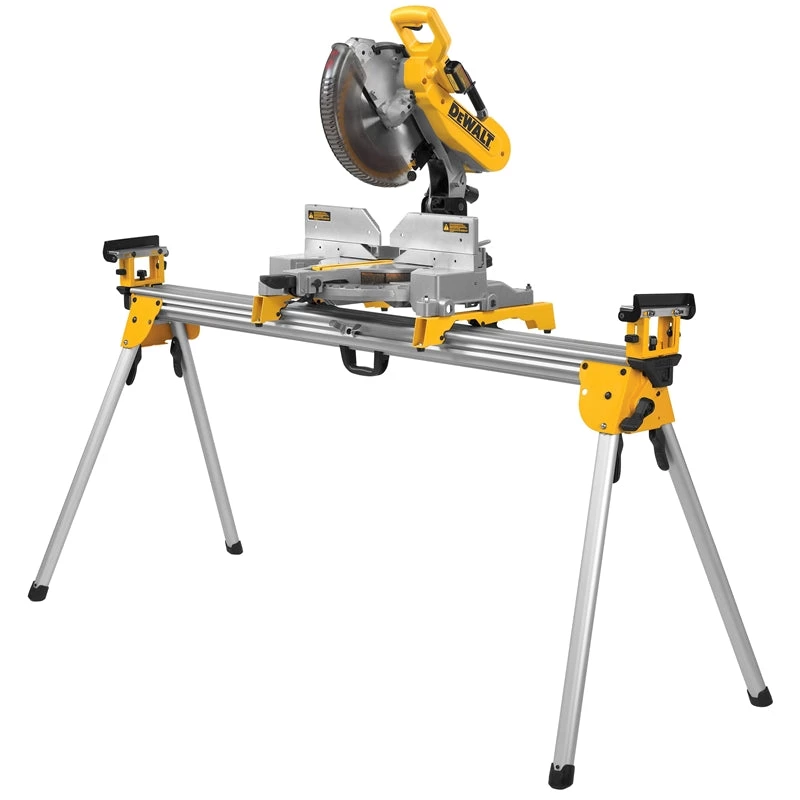

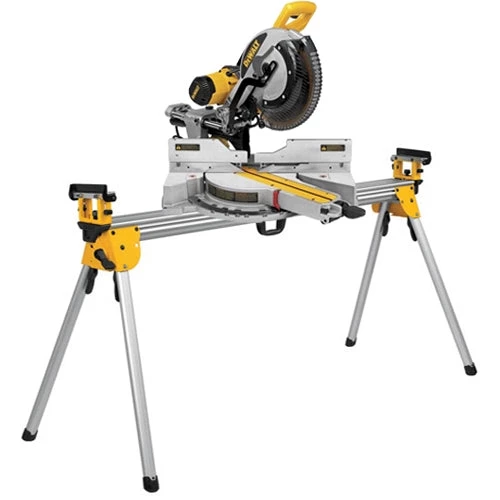

DEWALT DWS780LST – 12-Inch Double Bevel Sliding Compound Miter Saw – (With Stand)

FEATURES

• Integrated CUTLINE™ Blade Positioning System provides adjustment free cut line indication for better accuracy and visibility
• Powerful 15 amp, 3,800 rpm motor delivers extended power and durability
• Super efficient dust collection system captures over 75% of dust generated
• Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
• Exclusive back fence design cuts up to 2×16 dimensional lumber at 90° and 2×12 at 45°
• Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
• Miters 60° to the right and 50° to the left providing increased capacity
• Oversized bevel scale makes bevel angle adjustments accurate and easy
• Compact, lightweight design (56 lbs.) allows for easy transport and storage
• Cam lock miter handle with detent override deliver quick and accurate miter angles
• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
• Innovative gearbox and belt-drive design increases vertical cutting capacity
• Precise miter system and machined base fence support optimize durability and cutting accuracy

SPECIFICATIONS

• 45° BEVEL CUT CAPACITY (DIMENSIONAL LUMBER) 2X14 (2X16WITH BACK FENCE)
• 45° MITER CUT CAPACITY (MAX HEIGHT) 4X8
• 45° MITER CUT CAPACITY (MAX WIDTH) 4X8
• 90° CROSS-CUT CAPACITY (DIMENSIONAL LUMBER) 2X14(2X16 WITH BACK FENCE) IN
• 90° CROSS-CUT CAPACITY (MAX WIDTH) 14″ (16″ W/ SPECIAL SETUP)
• AMPS 15 AMPS
• ARBOR SIZE 5/8″ OR 1 IN
• BLADE DIAMETER 12″
• FOR METAL CUTTING NO
• FOR WOOD CUTTING TRUE
• HANDLE TYPE TOP HANDLE
• HORIZONTAL CAPACITY: BASEBOARD LYING FLAT 16 IN
• HORIZONTAL CAPACITY: CROWN MOLDING LYING FLAT 13-3/4 IN
• NO LOAD SPEED 3,800 RPM
• POWER TOOL TYPE CORDED
• TOOL WEIGHT 56 LBS
• TYPE OF MITER SAW SLIDE
• VERTICAL CAPACITY: BASEBOARD AGAINST FENCE 6-3/4 IN
• VERTICAL CAPACITY: CROWN MOLDING VERTICALLY NESTED 7-1/2 IN

INCLUDES

• DWS780 12 in. Miter Saw
• Blade wrench
• Dust bag
• Vertical material clamp
• 12 in. Carbide Blade
